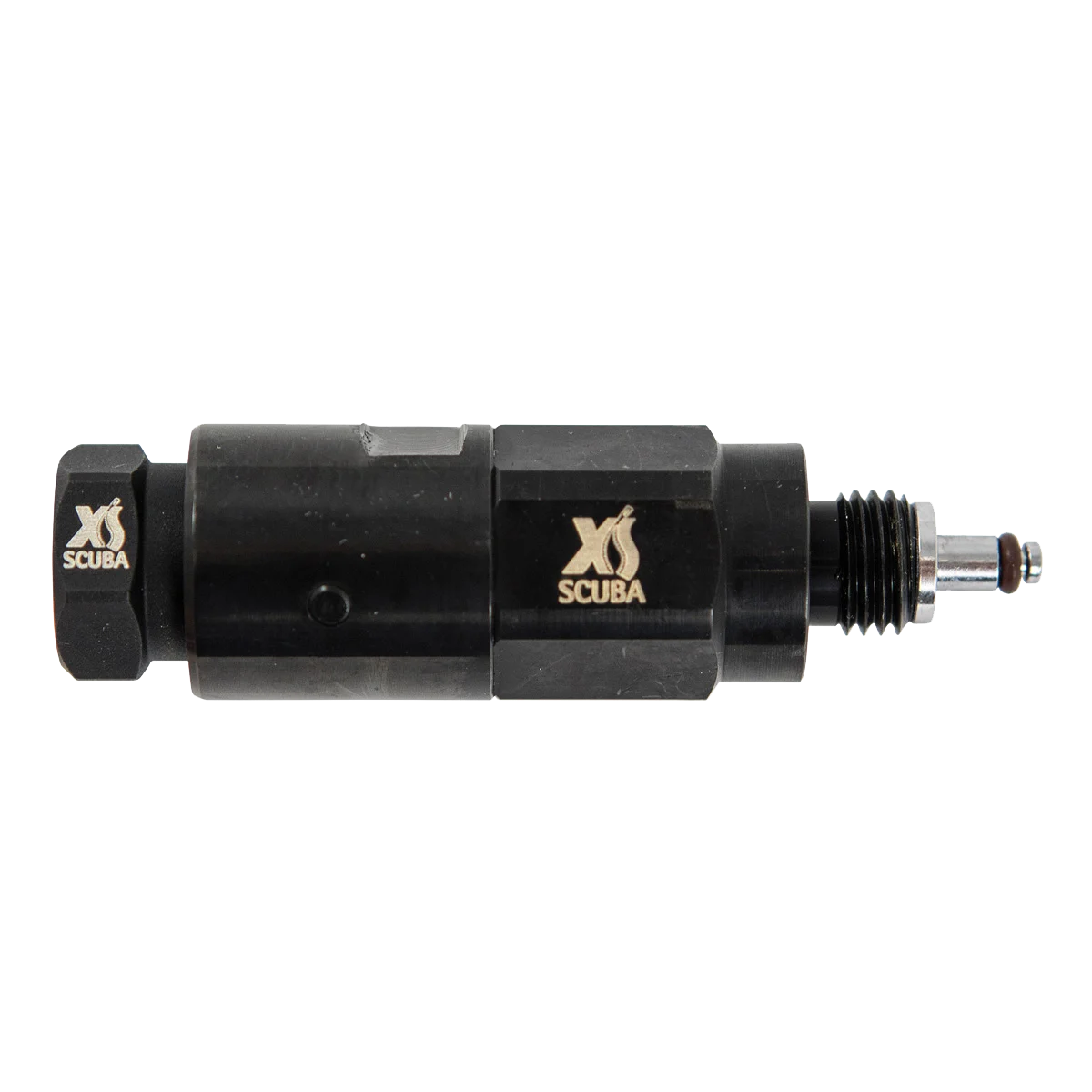

XS Scuba High-Pressure Hose Quick Disconnect, Standard

XS Scuba High-Pressure Hose Quick Disconnect

$145.00 $131.95 Sale

A bayonet-style connector that lets a compatible gauge or console detach from its high-pressure hose.

Item: AC383

Equipment is ordered after availability and costs are confirmed. Eligible card payments are authorized at checkout and captured after that review.

Ordinary equipment returns: request within seven calendar days of delivery or collection, then ship within seven days after written approval. Unopened manufacturer retail packaging required; 25% restocking fee. Warranty, defect, shop-error and legal-rights exceptions apply. Return Policy.

Details & Specifications
  • Push-and-turn bayonet connection
  • 7/16-20 female gauge end
  • 7/16-20 male hose end
  • Airspool with Viton O-rings included
  • Black-chromed brass
  • Maximum Operating Pressure: 3,500 psi (240 bar)
  • Supplier-cleaned for up to 40% pre-blended nitrox
Fit & Setup

This fitting is rated lower than the separate 5,000 psi HP port adapters. Match the gauge connection and operating pressure before fitting.

All Options & Prices
XS Scuba High-Pressure Hose Quick Disconnect
OptionItemPrice
StandardAC383$131.95
